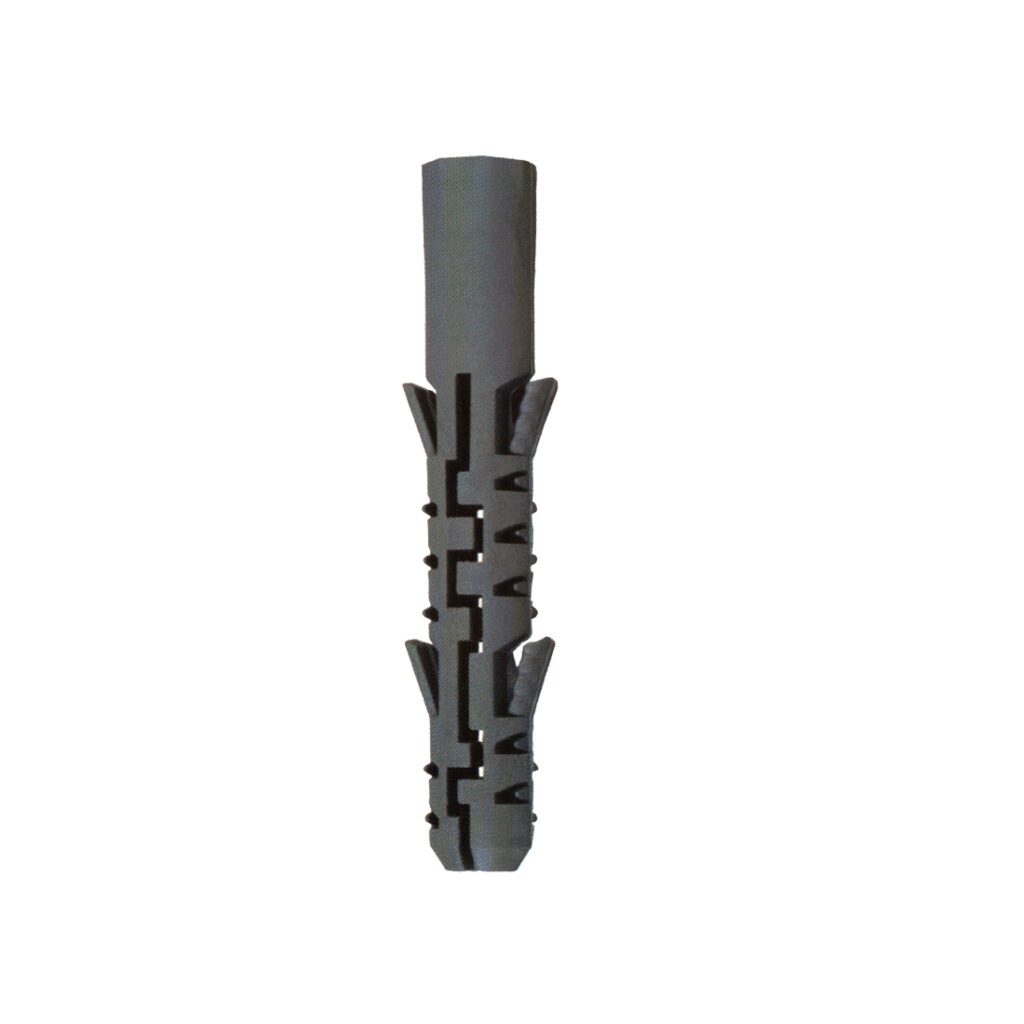

PREMIUM NYLON WALL PLUGS

A nylon plug of high quality with screw guidance and anti-rotation lugs. The innovative design gives excellent results in a number of base materials.

Rimless
Screw Guidance
2 Way Expansion
Suitable For Wood And Chipboard Screws

Data SheetData Sheet

Product Information

Solid Concrete
Dense Concrete Blocks
Solid Bricks
Stone
Aerated Concrete Blocks

  • Electrical and Plumbing Fittings
  • Pictures
  • Shelving
  • Conduit Clips

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Anchor Plug Length (Lplug) mm
Woodscrew Gauge mm
Metric Screw Size mm
Min Hole Depth (h1) mm
NP06030 6 30 6-10 3.5-5.0 35
NP06055 6 55 6-10 3.5-5.0 60
NP08040 8 40 10-14 4.5-6.0 45
NP08060 8 60 10-14 4.5-6.0 70
NP10080 10 80 14-18 6.0-8.0 90
NP12055 12 55 18-24 8.0-10.0 60

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing.

Insert nylon plug.

Attach fixture and secure it using a suitable diameter screw.

>
