PROJECTING BOLT SHIELD ANCHORS ZYP

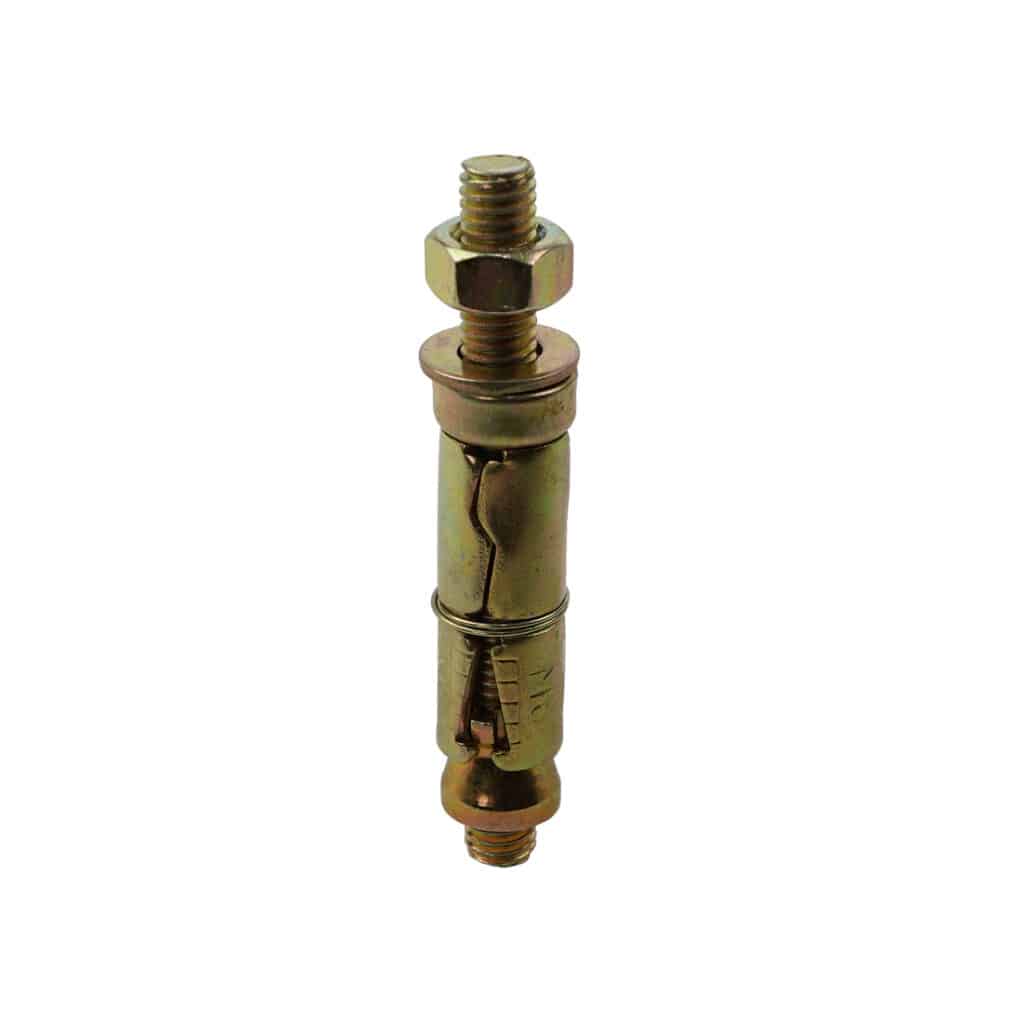

The projecting bolt shield anchor is a three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Zinc Plated Minimum 5µm

Data SheetData Sheet

Product Information

Non-Cracked Concrete C20/25 To C50/60
Solid Brickwork
Solid Concrete Blocks

  • Security Shutters
  • Fencing
  • Gates
  • Fire Doors
  • Pipe and Ductwork

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Overall Length mm
Hole Diameter mm
Max Fixture Thickness (tfix) mm
Fixture Clearance Hole (df) mm
Embedment Depth (hnom) mm
Min Hole Depth (h1) mm
Min Structure Thickness (h) mm
Installation Torque (Tinst) Nm
APB0610 6 60 12 10 7 45 50 100 6
APB0625 6 75 12 25 7 45 50 100 6
APB0650 6 100 12 50 7 45 50 100 6
APB0815 8 75 14 15 9 50 55 100 14
APB0840 8 100 14 40 9 50 55 100 14
APB0880 8 140 14 80 9 50 55 100 14
APB1010 10 80 16 10 12 60 65 120 27
APB1030 10 100 16 30 12 60 65 120 27
APB1050 10 120 16 50 12 60 65 120 27
APB1070 10 140 16 70 12 60 65 120 27
APB1215 12 100 20 15 14 75 85 160 46
APB1225 12 110 20 25 14 75 85 160 46
APB1250 12 135 20 50 14 75 85 160 46
APB1270 12 155 20 70 14 75 85 160 46
APB1635 16 160 25 35 18 110 125 200 110

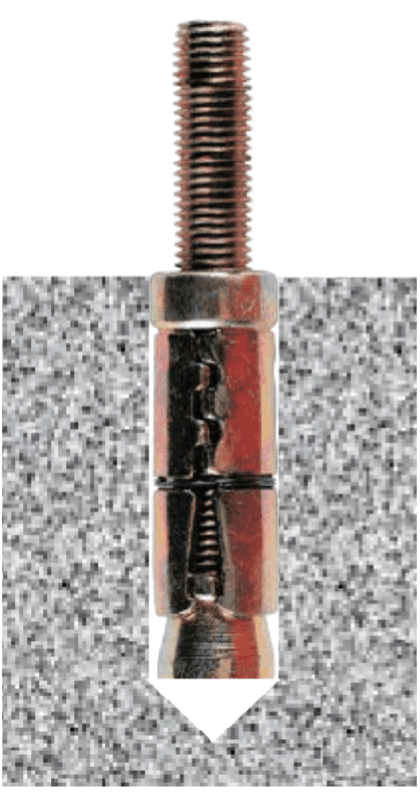

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

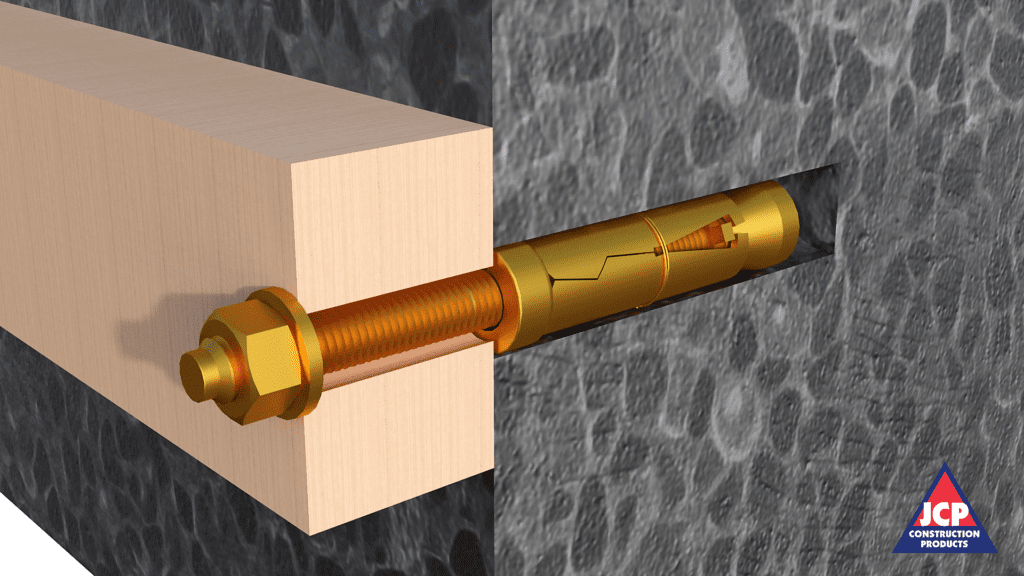

Insert assembled anchor through fixture into concrete.

Attach fixture Tighten with torque wrench to recommended torque. Tighten with torque wrench to recommended torque.

>
