ROSETT CAVITY FIXINGS

A rosett cavity fixing is for use in plasterboard and other materials where a fixing into a cavity is required. For use in board dimensions of 3 to 30mm where improved loads are required.

Material: Nylon
Secure And Solid Fixing
Heavy Duty
Torx Drive Screw
30% Glass Fibre Re-Enforced Thread
Minimum 5mm
Single And Double Skin Plasterboard Options Available

Data SheetData Sheet

Product Information

Plasterboard
Chipboard
Plywood
Fibreboard
Hardboard

  • Electrical Fittings
  • Pictures
  • Curtain Rods
  • Wall Cupboards
  • Skirting Boards

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Screw Length mm
Wall Thickness mm
Max Fixture Thickness (tfix) mm
Hole Diameter mm
BR05055 55 9-18 15 10
BR05080 85 9-18 40 10
RR05065 65 18-30 12 10
RR05090 90 18-30 38 10

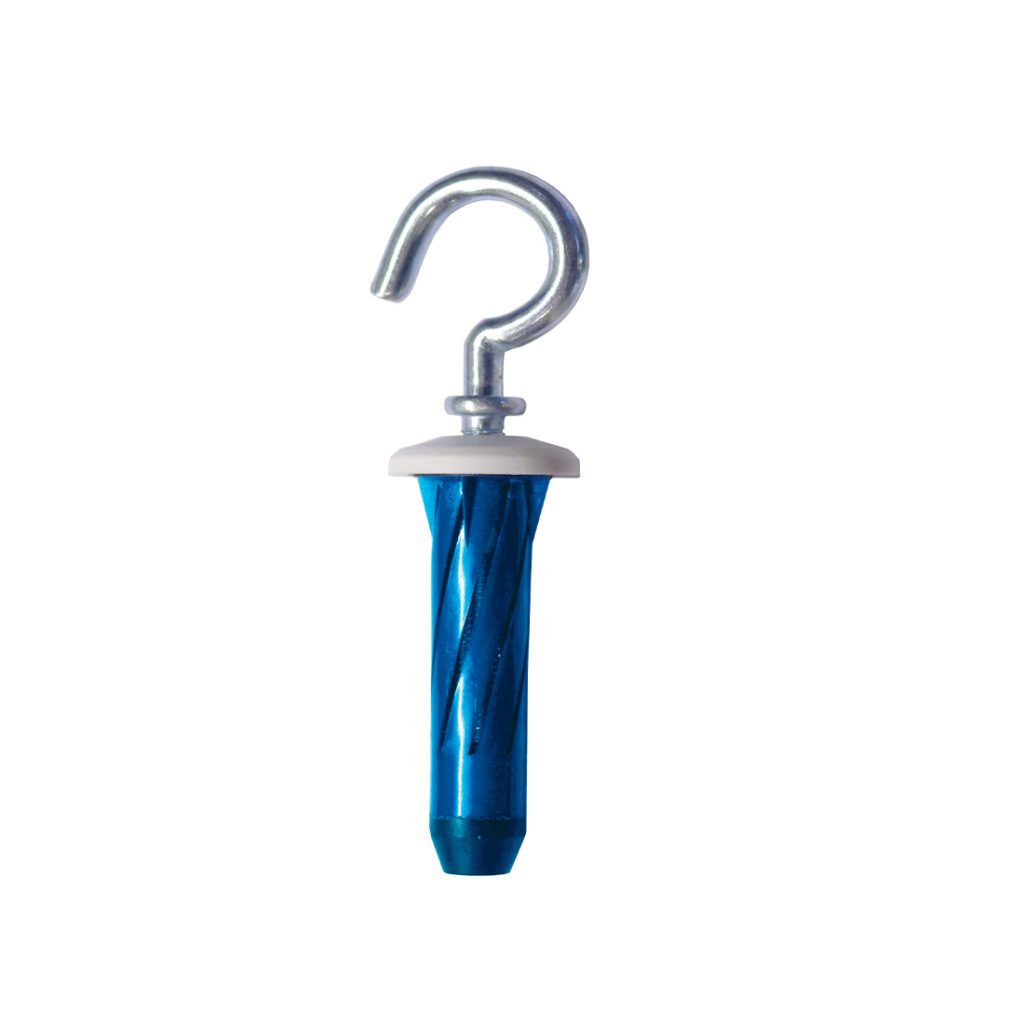

BRHOOK - 9-18 - 10

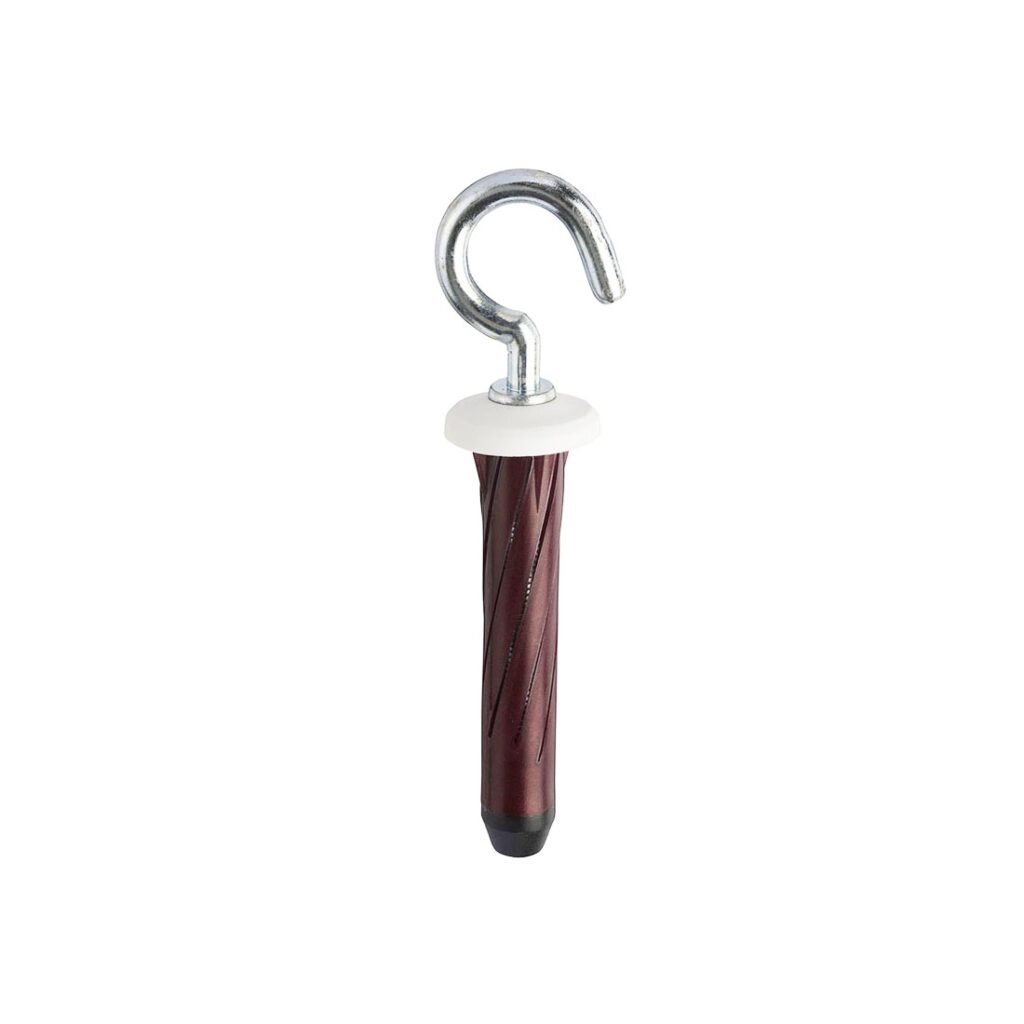

RRHOOK - 18-30 - 10

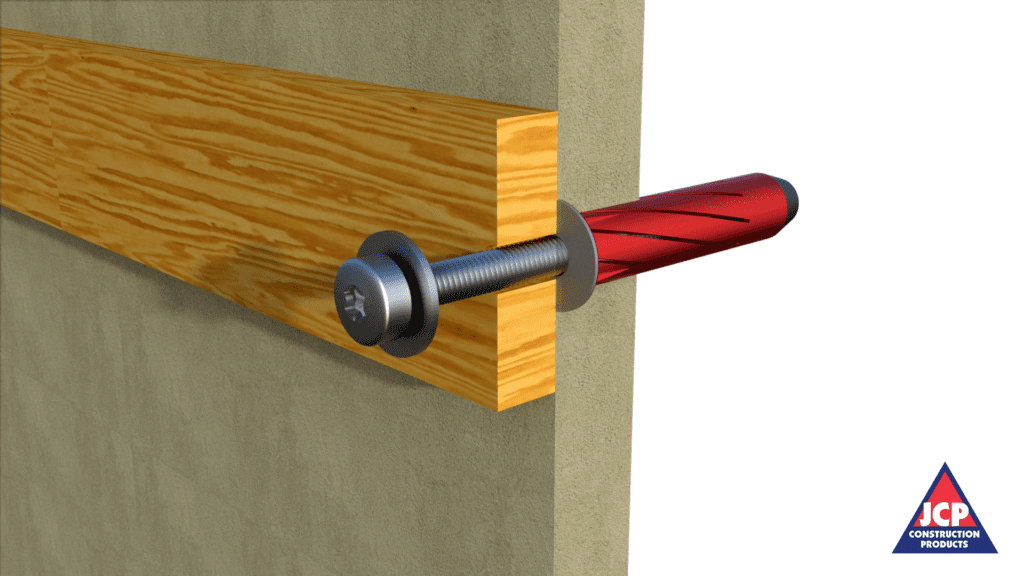

Installation Instructions

Drill correct diameter hole through into cavity.

Insert rosett into drilled hole.

Tighten rosett to pull plug back on itself.

>
