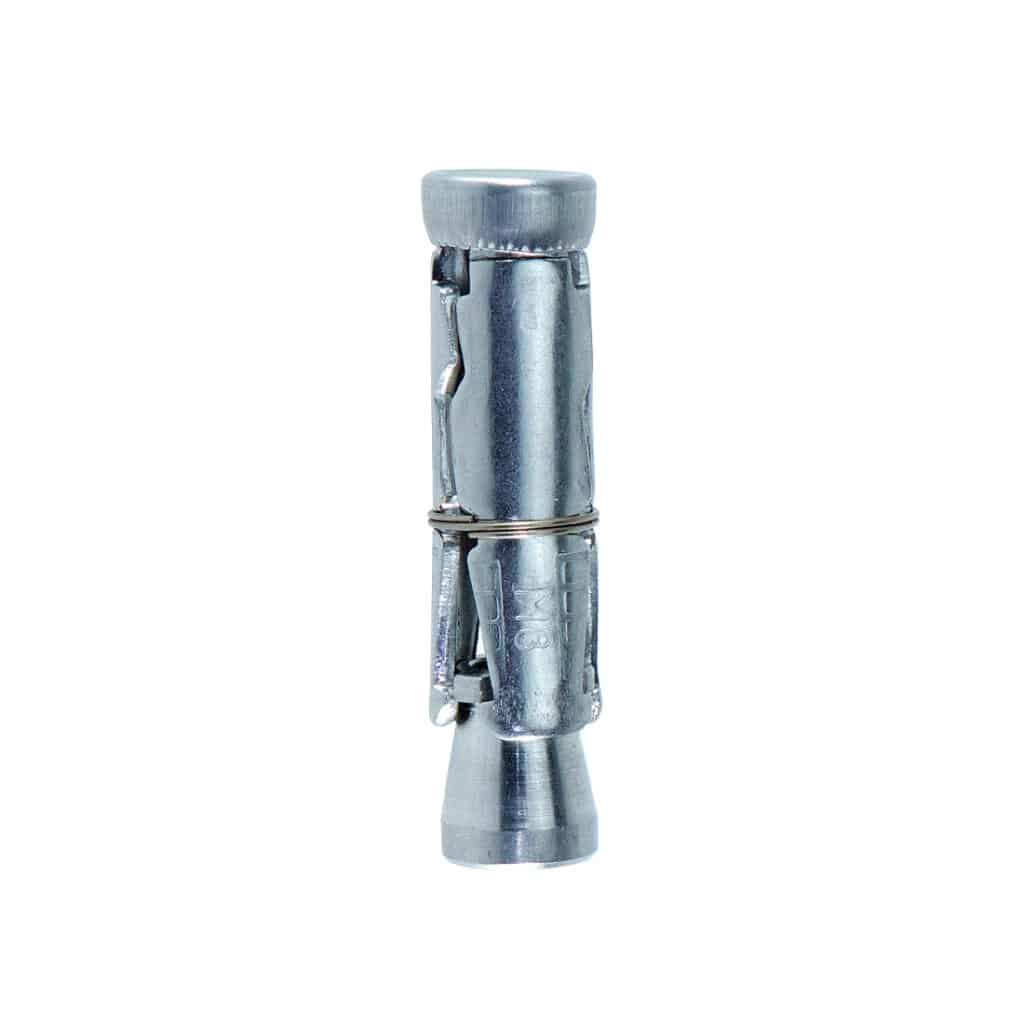

SHIELD ONLY SHIELD ANCHORS A4 STAINLESS STEEL

The shield anchor is an A4-316 stainless steel three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Material: A4-316 Stainless Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Suitable for External Use

Data SheetData Sheet

Product Information

Non-Cracked Concrete C20/25 To C50/60
Solid Brickwork
Solid Concrete Blocks

  • Security Shutters
  • Fencing
  • Gates
  • Fire Doors
  • Pipe and Ductwork

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Hole Diameter mm
Minimum Bolt Length mm
Fixture Clearance Hole (df) mm
Embedment Depth (hnom) mm
Min Hole Depth (h1) mm
Min Structure Thickness (h) mm
Installation Torque (Tinst) Nm
PSM06SS 6 45 12 tfix +45 7 45 50 100 6
PSM08SS 8 50 14 tfix+50 10 50 55 100 14
PSM10SS 10 60 16 tfix +60 12 60 65 100 27
PSM12SS 12 75 20 tfix+75 14 75 85 120 46

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert anchor into concrete.

Position fixture insert bolt tighten with torque wrench to recommended torque.

>
