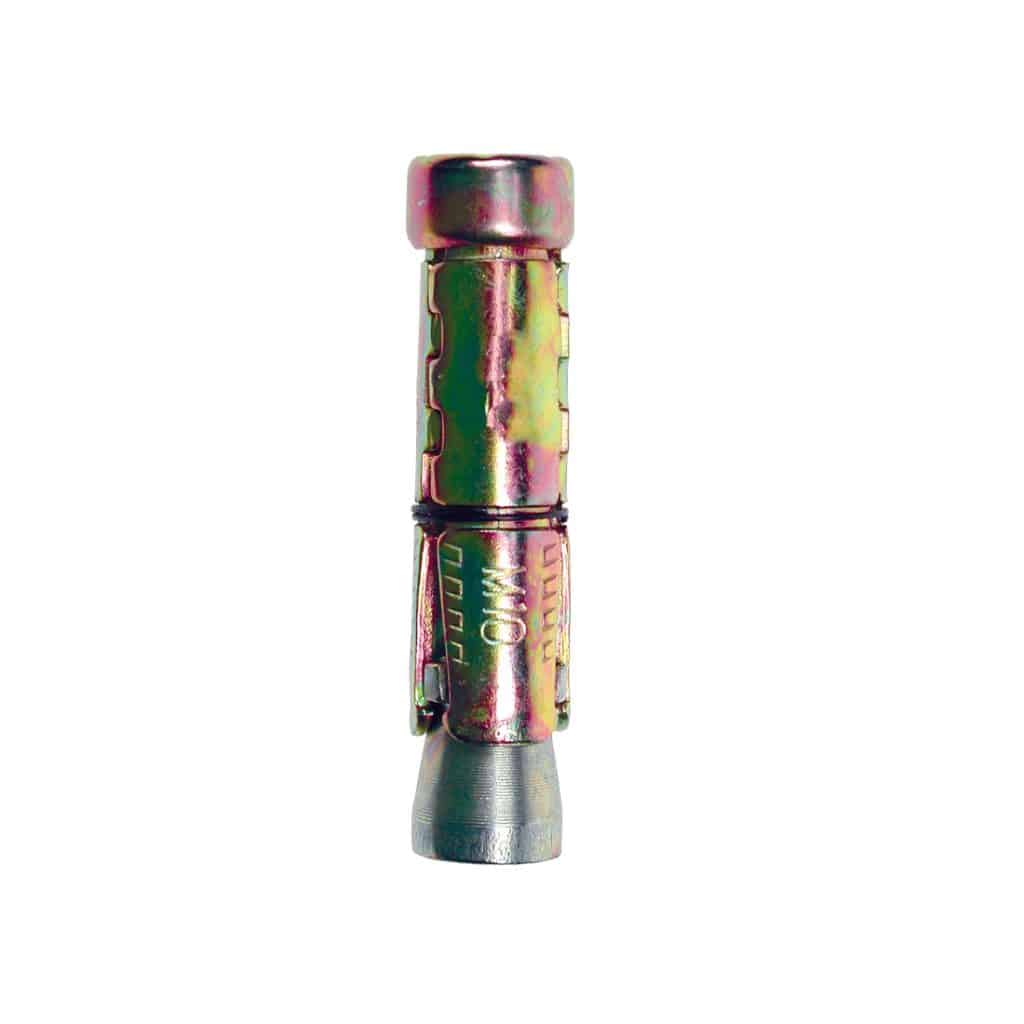

The shield anchor is a three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Zinc Plated Minimum 5µm

Data SheetData Sheet

Product Information

Non-Cracked Concrete C20/25 To C50/60
Solid Brickwork
Solid Concrete Blocks

  • Security Shutters
  • Fencing
  • Gates
  • Fire Doors
  • Pipe and Ductwork

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Drill Hole Diameter (d0) mm
Max Fixture Thickness (tfix) mm
Shield Length (L) mm
Min Hole Depth (h1) mm
ASHOM06 6 12 - 45 50
ASHOM08 8 14 - 50 55
ASHOM10 10 16 - 60 65
ASHOM12 12 20 - 75 85
ASHOM16 16 25 - 110 125

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Position fixture. Insert bolt tighten with torque wrench to recommended torque.

>
