THIN WALL BLIND BOLTS ZINC NICKEL

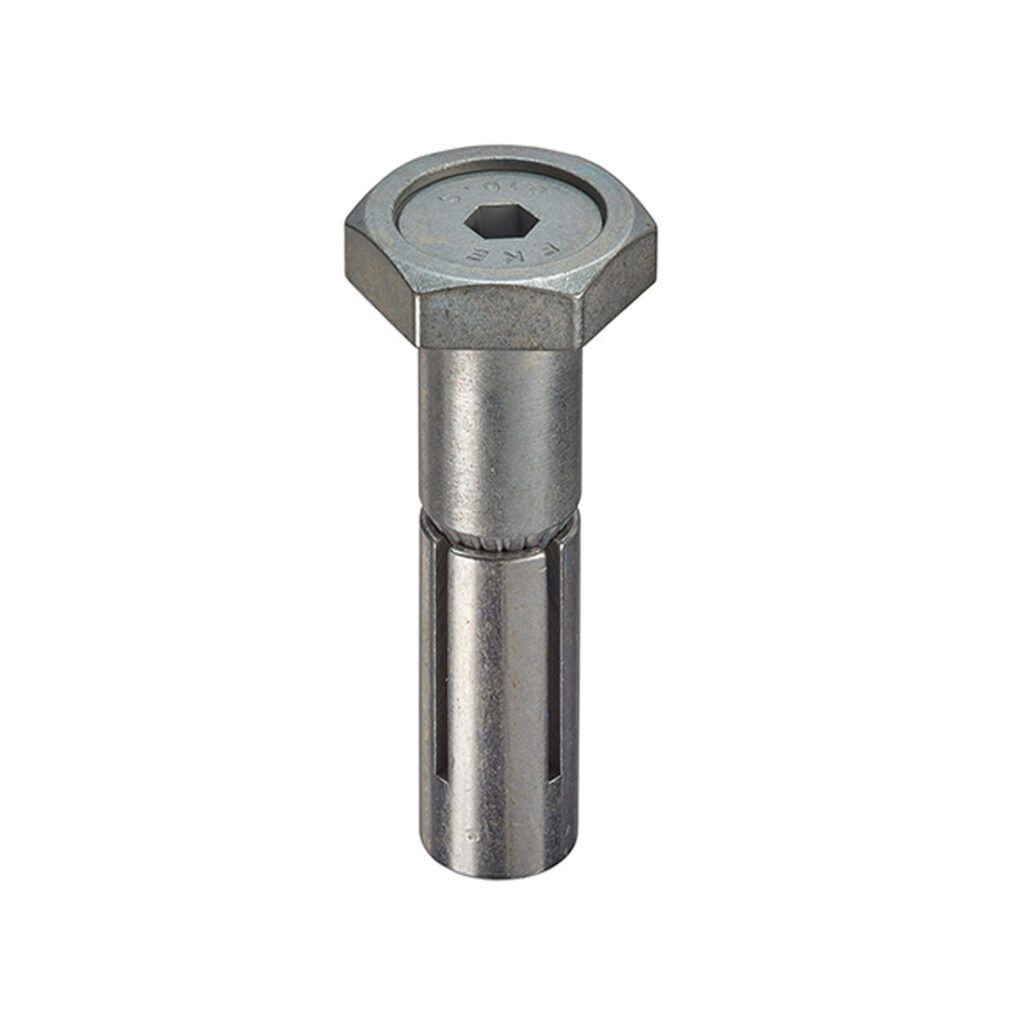

The Thin Wall Blind Bolt is for blind fixing to lightweight sheet steel or cladding material. After installation, a neat, low-profile head is left with no stud. The Thin Wall Bolt has a strong shear capacity. It is quick and easy to install. The wide range of sizes gives flexibility of choosing the correct bolt according to the fixture thickness.

Finish: Zinc Nickel
Material: Grade 8.8 Steel
Fast And Secure Installation
Reaction To Fire Class A1
High-Performance
No Over-Sized Hole Required
Low Profile Head
High Shear Capacity

Data SheetData Sheet

Product Information

  • Box Sections
  • Thin Walled Sections
  • Hollow Profiles
  • Simple Connections
  • Lightweight Steel Sheet
  • Lightweight Cladding Material

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Size
Length (L) mm
Hole Diameter mm
Min Fixture Thickness (tfix) mm
Max Fixture Thickness (tfix) mm
Depth Clearance (D0) mm
Width Across Flats (A/F) mm
Width Across Corners (A/C) mm
Nominal Hex Socket Size (S) mm
BBTW0810ZN 8 35 8 2 10 35 14.3 16.3 3
BBTW0816ZN 8 40 8 8 16 40 14.3 16.3 3
BBTW1010ZN 10 40 10 2 10 35 17 19.5 4
BBTW1016ZN 10 45 10 8 16 40 17 19.5 4
BBTW1310ZN 13 45 13 2 10 45 21 24 5
BBTW1316ZN 13 50 13 8 16 50 21 24 5
>
