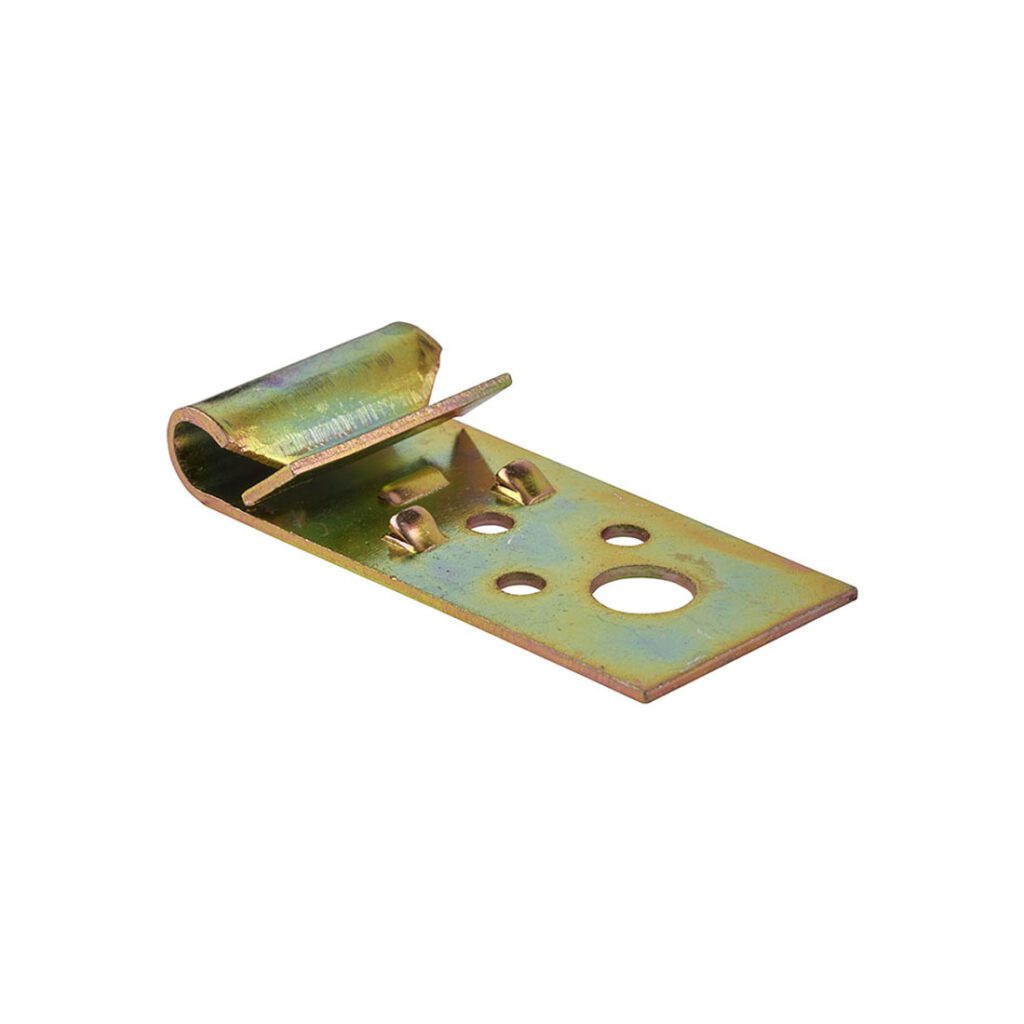

VERTICAL FLANGE CLIPS

Vertical flange clips are high strength clips suitable for fixing suspended wire hangers to steel profile.

Finish: ZYP
Material: Steel
Fixes to a Range of Steel Profiles
Projecting Lugs for Secure Attachment
Spring Steel Clip
No Screws Required
Flexible Positioning
High Strength
Simple Installation

Data SheetData Sheet

Product Information

Steel Flanges

  • Connection of Wires to Steel Beams
  • Connection of Bolts to Steel Beams
  • Connection of Chain to Steel Beams

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Size
Height mm
Width mm
Min Purlin Gauge mm
Max Purlin Gauge mm
Hole Diameter mm
Rec Vertical Load kN
VFC1 VFC1 42 20 1.6 2.5 1 x 6.5 / 3 x 3.0 0.67

Installation Instructions

Position over vertical flange of steel profile.

Hammer into place.

Attached suspension wire.

>
